Descripción
Información de Producto

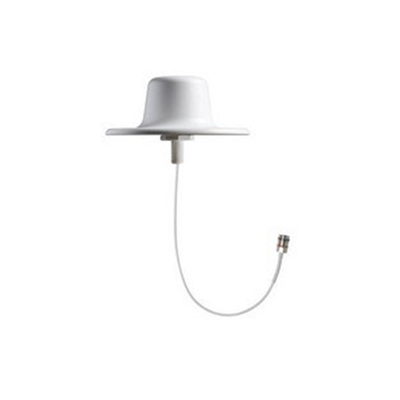

Antena Omnidireccional CELL-MAX Uso Interior de 698-6000 MHz SE REQUIERE MONTAJE EN TECHO 7760591 Vendido por separado
Modelo: CMAX-O-43-WV53
Marca: ANDREW
Especificaciones:
| Electrical Specifications |
| Frequency Band, MHz | 698–960 | 1400–1600 | 1710–2700 | 3300–3800 | 5150–5925 |
|---|---|---|---|---|---|
| Gain, dBi | 1.3 | 2.1 | 2.8 | 3.3 | 4.8 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 |
| VSWR | Return Loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.6 | 12.7 | 1.6 | 12.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 50 | 50 | 50 | 50 | 50 |
| Polarization | Vertical | Vertical | Vertical | Vertical | Vertical |
| Impedance | 50 ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm |
| Product Classification | |
| Brand | Cell-Max™ |
| Product Type | In-building antenna |
|
|
|
| General Specifications | |
| Antenna Type | Omni |
| Application | Indoor |
| Operating Frequency Band | 1400 – 1600 MHz | 1710 – 2700 MHz | 3300 – 3800 MHz | 5150 – 5925 MHz | 698 – 960 MHz |
| Brand | Andrew® |
| Mount Type | Thru-hole ceiling mount (optional) |
| Package Quantity | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
