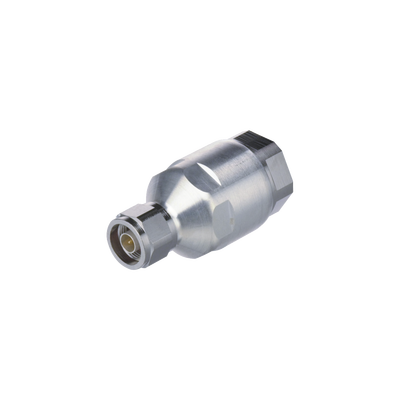

Type N Male OnePiece™ for 7/8 in LDF5-50A cable

Name: Type N Male OnePiece™ for 7/8 in LDF5-50A cable
Brand: ANDREW
SKU: 21214
Price: 897.03 MXN
Availability: OutOfStock

Ahorrar $ 108.66

ANDREWSKU: 21214

Modelo: L5PNM-RPC

Código fiscal: 39121433

Variante

Precio:

$ 897.03 MXN $ 1,005.69 MXN

Stock:

Agotado

Cantidad:

Comparte este producto

Productos Info - Todo en Sistemas de Emergencia, Seguridad y Comunicación

Modelo: L5PNM-RPC

Marca: ANDREW

ELECTRICAL SPECIFICATIONS

AVERAGE POWER	0.6 kW @ 900 MHz
CABLE IMPEDANCE	50 ohm
DC TEST VOLTAGE	2000 V
CONNECTOR IMPEDANCE	50 ohm
PEAK POWER, MAXIMUM	10.00 kW
3RD ORDER IMD, TYPICAL	-120 dBm @ 910 MHz
INSERTION LOSS, TYPICAL	0.05 dB
SHIELDING EFFECTIVENESS	-130 dB
OPERATING FREQUENCY BAND	0 – 5000 MHz
3RD ORDER IMD TEST METHOD	Two +43 dBm carriers
INSULATION RESISTANCE, MINIMUM	5000 MOhm
INNER CONTACT RESISTANCE, MAXIMUM	2.00 mOhm
OUTER CONTACT RESISTANCE, MAXIMUM	0.30 mOhm
RF OPERATING VOLTAGE, MAXIMUM (VRMS)	707.00 V
